Scott-T Transformers

RoMan’s Scott-T water cooled transformers provide a balanced three phase distribution of power to be used in two-phase load applications. The transformers are made in two identical configurations, allowing partial spares to be used across an installed line. Our Scott-T transformers can be integrated with our SCR and IGBT controls, or with any brand of controllers. They are also available in small cabinets with all associated accessories or in cost-effective standalone designs. RoMan also provides mechanical frames and stands for transformer mounting.

  • Three Phase Primary
  • Two Single Phase Secondary Circuits
  • AC or DC Output
  • Center Tap or Bridge Rectifier in DC Applications
  • Step Up
  • Step Down
  • Frequency Range: 40 – 2,000 Hz
  • Fully encapsulated to ensure long life
  • KVA Range: 1 kVA to 15MVA
  • Can be integrated with our SCR and IGBT controls, or with any brand of controllers and Saturable Reactors
  • Smart transformer accessories available include CT’s, PT’s, Thermocouples, and Flow Switches, for integration into the top-level control system for system analysis.
  • More Efficient Copper Windings

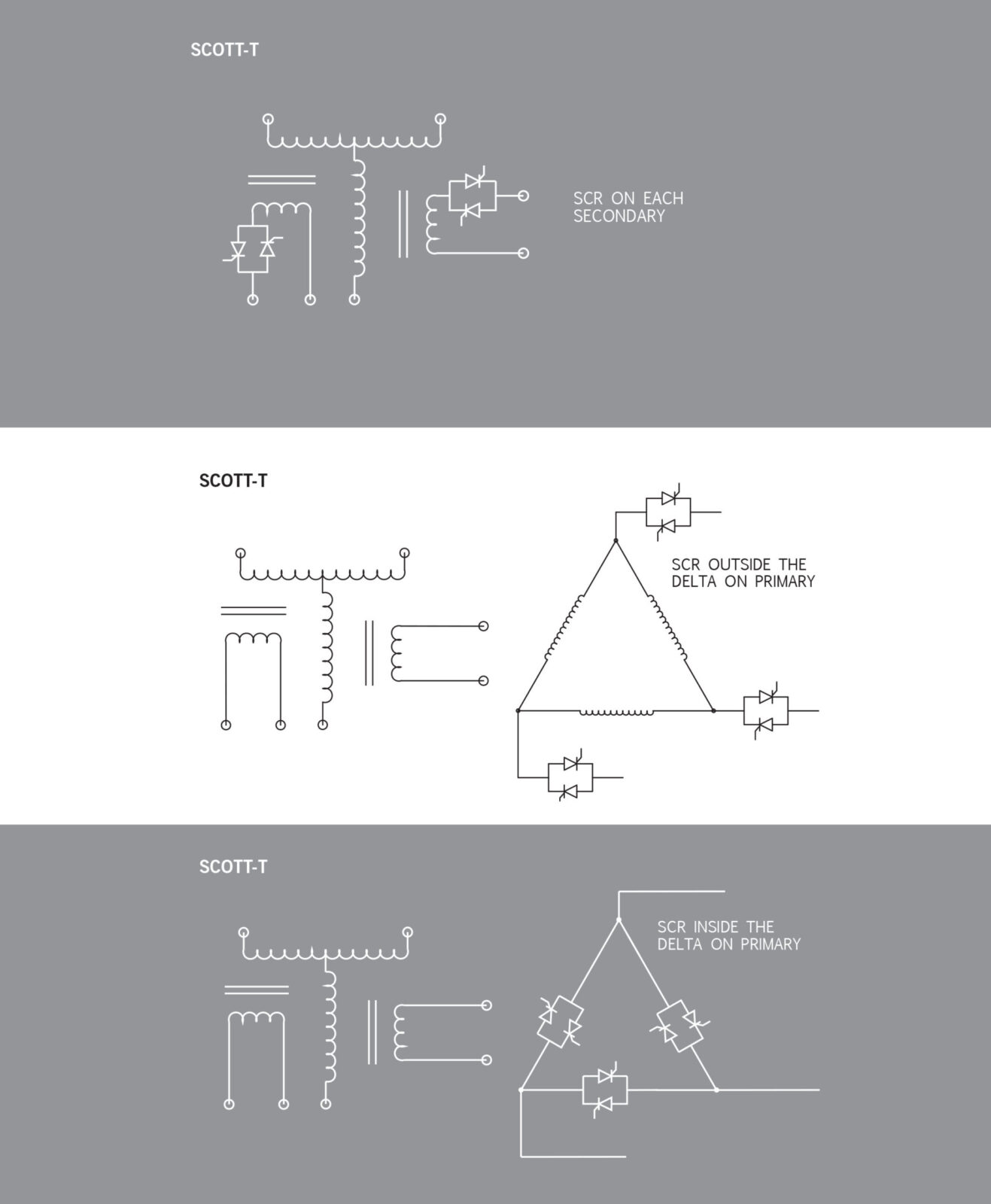

Common SCOTT-T Connections

Common Delta & WYE Connections
