Size 12 MFDC Multi-Stack TDC-8074

RoMan’s MFDC water-cooled transformers are Ideal for heavy-duty machine, fixture and FRT applications. A secondary current of 135K amps helps in the production of large projection welds. It is also available in 500 and 800, 1000 Hz.

• 650 Volt, 1,000 Hz

• 450 KVA @ 50% duty cycle

• Secondary no load DC voltages of 13.0 and 17.5 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 30 L.P.M. (8 G.P.M.) minimum @ 30°C max inlet temperature

• Weight: 122.5 kg (270 lbs.)

   • Also available in 500 & 800 Volt, 1,000 Hz

Drawing

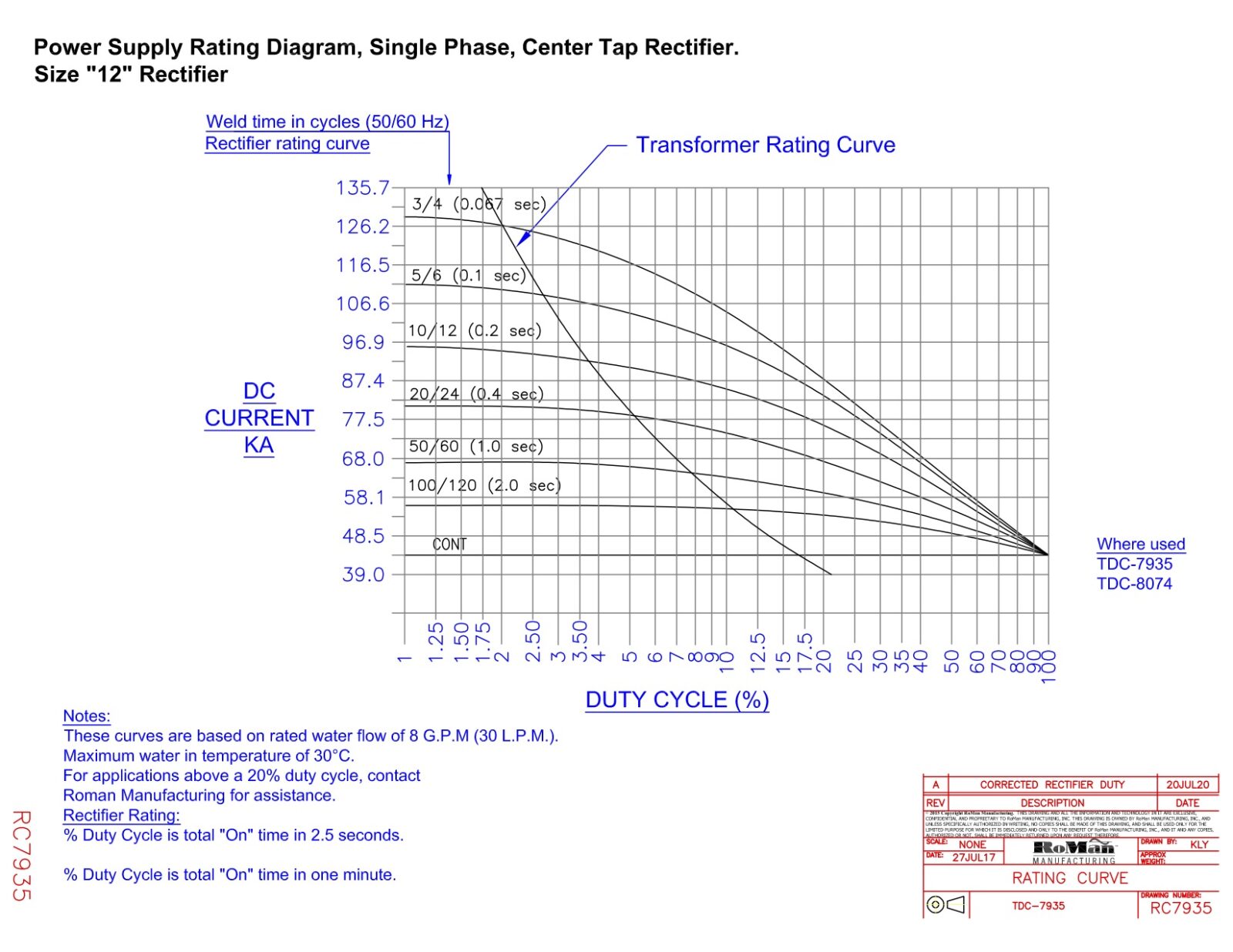

Rating Curve
