Three-Phase Transformers
Three Phase transformers provide three phase distribution of power to the loads. Multiple configurations including Delta and Wye are available. Various mounting options are available to meet your space and size requirements. Our Three Phase transformers can be integrated with our SCR and IGBT controls, or with any brand of controllers.

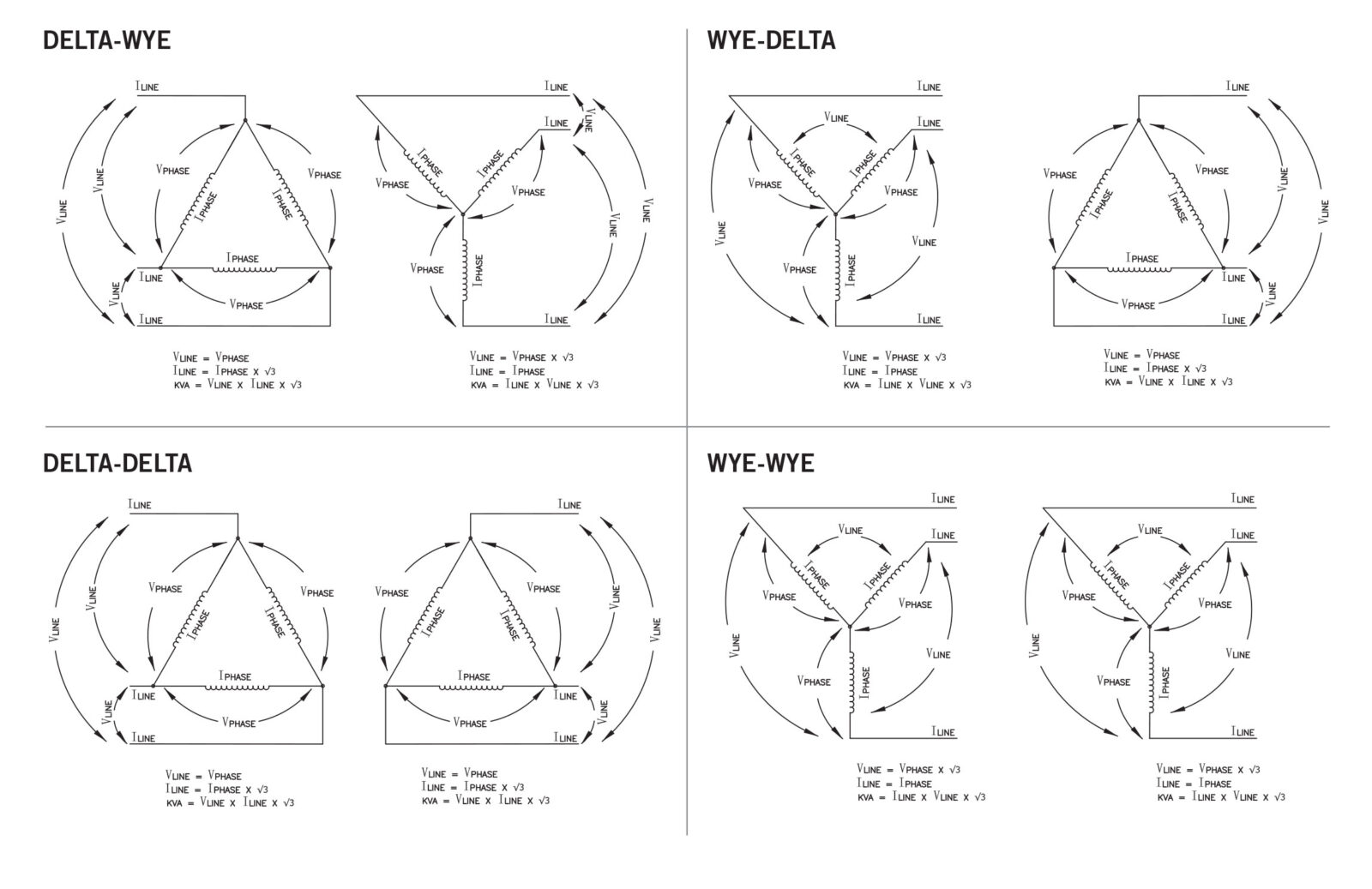

- Three Phase (Delta to Wye, Delta to Delta, Wye to Wye, Wye to Delta, Engineered Solutions)
- AC or DC Output
- Center tap, Bridge or six phase star Rectifier in DC Applications
- Isolation Type
- Auto Type
- Interphase
- Multi Pulse
- Step Up
- Step Down
- Frequency Range: 40 – 2,000 Hz
- Fully encapsulated to ensure long life
- KVA Range: 1 kVA to 15MVA
- Can be integrated with our SCR and IGBT controls, or with any brand of controllers and Saturable Reactors
- Smart transformer accessories available include CT’s, PT’s, Thermocouples, and Flow Switches, for integration into the top-level control system for system analysis.
- More Efficient Copper Windings
