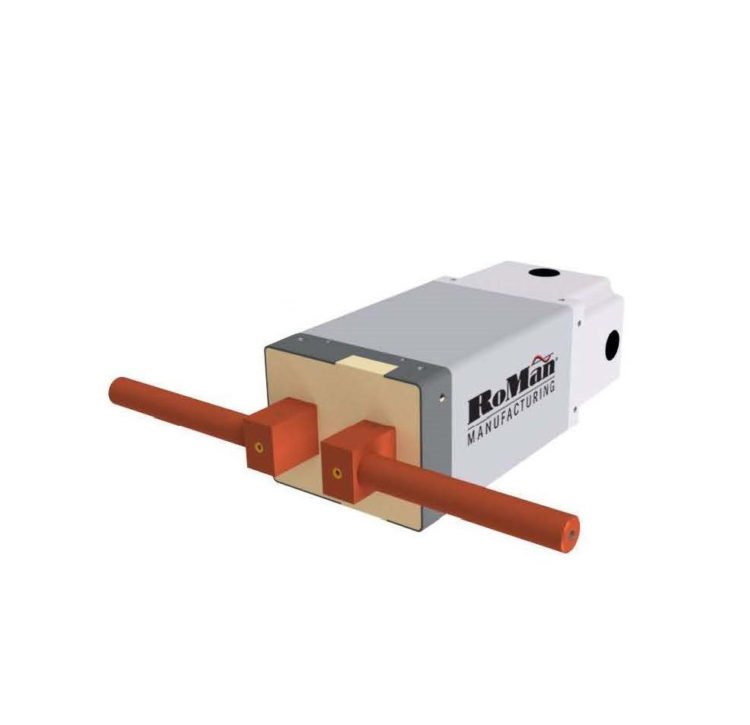

Forming Transformers
RoMan water-cooled forming transformers feature the most advanced technological advancement for the forming of glass. Our transformers and secondary buss systems are designed for balanced electrical delivery and optimal heating of the bushing. They replace bulky, and inefficient air-cooled transformers with smaller and highly efficient units designed to be close coupled—mounted next to the heat source, increasing overall system efficiencies while minimizing costly cabling. Our transformers can be integrated with IGBT controls, or with any type of controllers and saturable reactors. Different generations of RoMan forming transformers are available to meet specific budget and application needs.
- Single Phase
- Isolation Type
- Step Up
- Step Down
- Frequency Range: 40 – 2,000 Hz
- Fully encapsulated to ensure long life
- KVA Range: 1 kVA to 15MVA
- Can be integrated with our IGBT controls, or with any brand of controllers and Saturable Reactors
- Smart transformer accessories available include CT’s, PT’s, Thermocouples, and Flow Switches, for integration into the top-level control system for system analysis.
- Copper Windings
