Size 18 MFDC Multi-Stack TDC-8263

RoMan’s MFDC water-cooled transformers are Ideal for heavy-duty machine, fixture and FRT applications. A secondary current of 199K amps helps in the production of large projection welds. It is also available in 500 and 800, 1000 Hz.

• 650 Volt, 1,000 Hz

• 675 KVA @ 50% duty cycle

• Secondary no load DC voltages of 13.1 and 17.8 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 45 L.P.M. (12 G.P.M.) minimum @ 30°C

  max inlet temperature

• Weight: 186 kg (410 lbs.)

• Also available in 500 & 800 Volt, 1,000 Hz

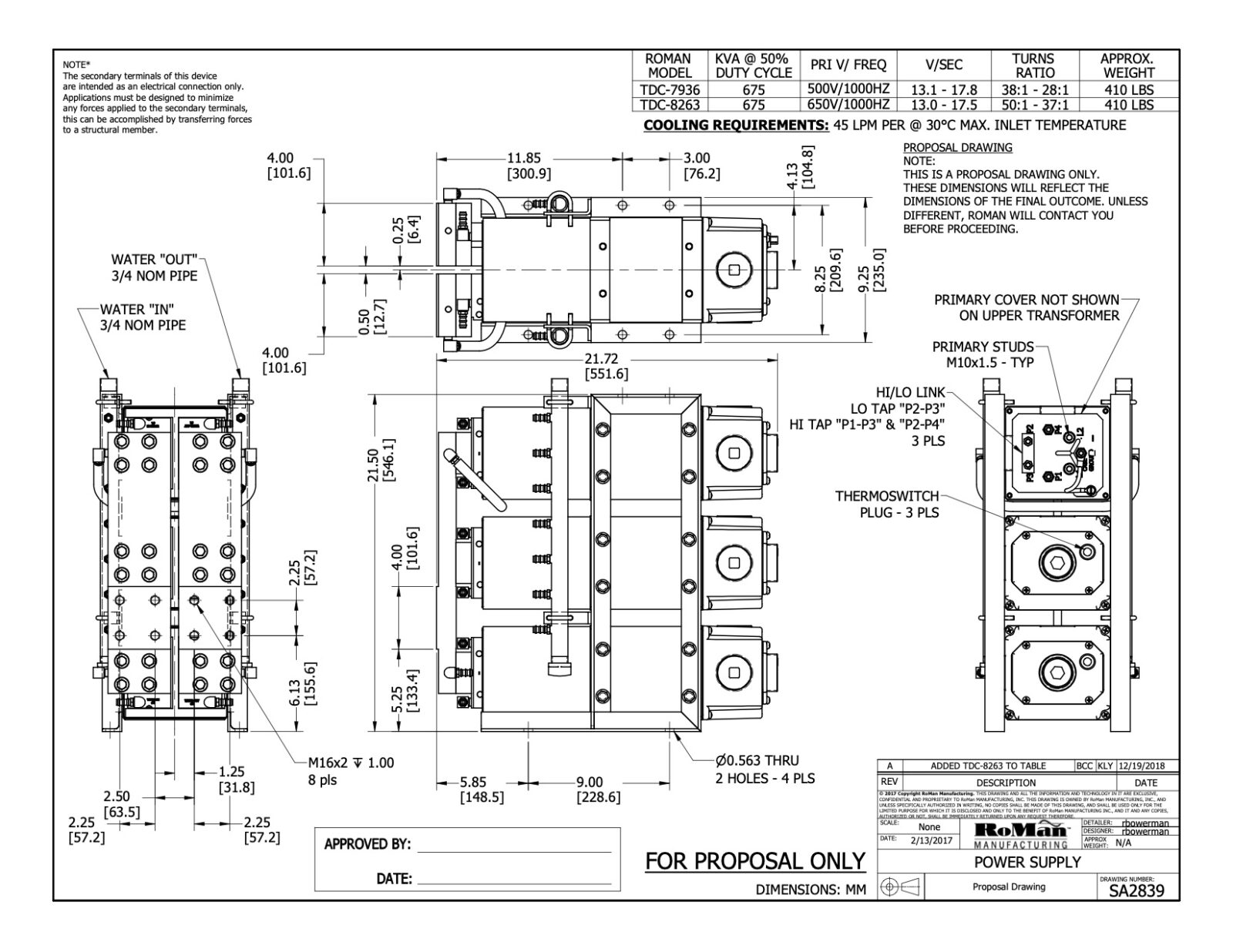

Drawing

Rating Curve
