Size 2 MFDC TDC-7367
RoMan’s next generation MFDC ultralight water-cooled inverter power supplies are ideal for robotic welding applications. With over-temperature thermoswitch protection and fully epoxy encapsulated to ensure long life, it is available in 500 and 800 Volt, 1,200 Hz.
• 650 Volt, 1,200 Hz
• 90 KVA @ 50% duty cycle
• Secondary no load DC voltage of 11.1 volts
• Over-temperature thermoswitch protection
• Fully epoxy encapsulated to ensure long life
• Water-cooled, 3.8 L.P.M. (1 G.P.M.) minimum @ 30°C max inlet temperature
• Weight: 13.5 kg (30 lbs.)
• Also available in 500 & 800 Volt, 1,200 Hz
Drawing

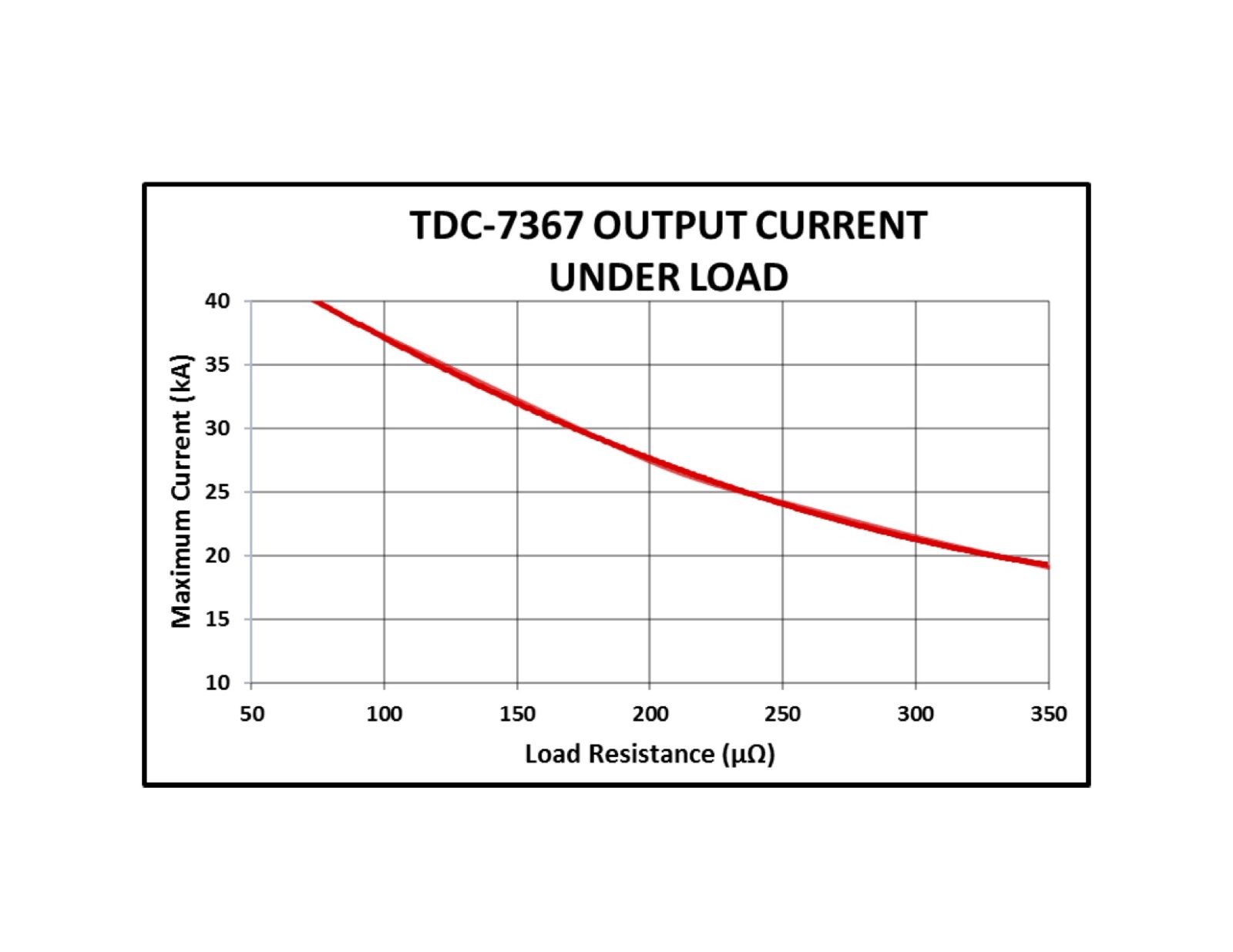

Rating Curve
