Boosting Transformers
Because of their smaller size, RoMan’s water-cooled boosting transformers can be placed directly next to the forehearth, or above/below existing catwalks, helping to maintain optimum temperature of flowing glass. This design eliminates the need for costly long copper cables runs to large air-cooled transformer rooms. Our transformers can be integrated with IGBT controls, or with any type of controllers and saturable reactors. RoMan also provides complete steelworks for transformer mounting.
- Single Phase
- Three Phase (Delta to Wye, Delta to Delta, Wye to Wye, Wye to Delta, Engineered Solutions, Scott-T)
- Isolation Type
- Auto Type
- Interphase
- Multi Pulse
- Step Up
- Step Down
- Frequency Range: 40 – 2,000 Hz
- Fully encapsulated to ensure long life
- KVA Range: 1 kVA to 15MVA
- Can be integrated with our IGBT controls, or with any brand of controllers and Saturable Reactors
- Smart transformer accessories available include CT’s, PT’s, Thermocouples, and Flow Switches, for integration into the top-level control system for system analysis.
- Typically, all Copper Windings

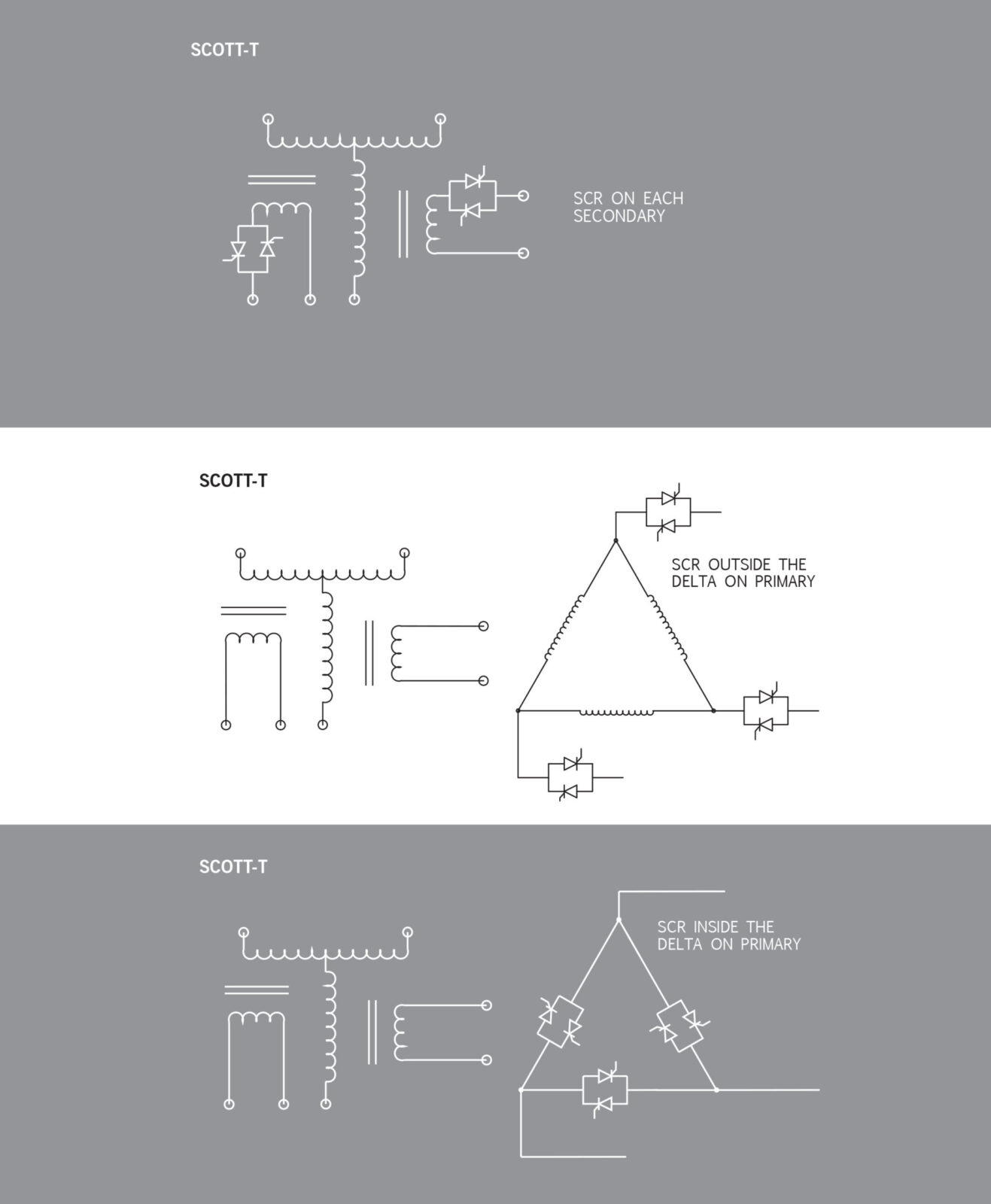

Common SCOTT-T Connections
Common Delta & WYE Connections
