Size 3 MFDC TDC-5998
RoMan’s lightweight MFDC water-cooled transformers are ideal for robotic and fixture spot welding applications. With over-temperature thermoswitch protection and fully epoxy encapsulated to ensure long life, it is also available in 500 and 800 Volt, 1,000 Hz.
• 650 Volt, 1,000 Hz
• 160 KVA @ 50% duty cycle

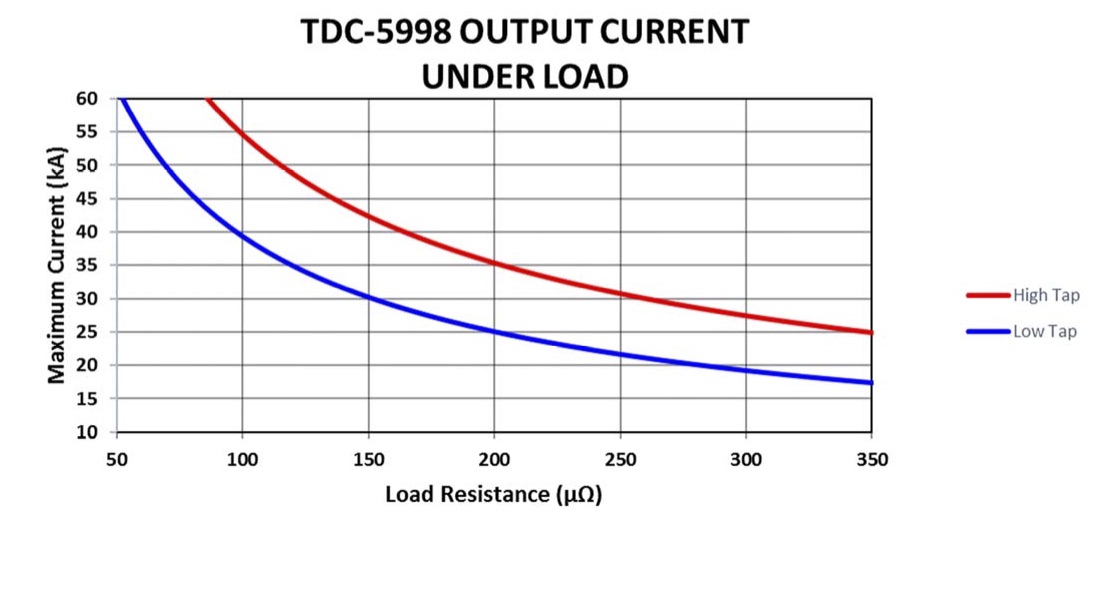

• Secondary no load DC voltages of 9.0 and 13.0 volts
• Over-temperature thermoswitch protection
• Secondary pick-up coil
• Fully epoxy encapsulated to ensure long life
• Water-cooled, 7.5 L.P.M. (2 G.P.M.) minimum @ 30°C max inlet temperature
• Weight: 29 kg (64 lbs.)
• Also available in 500 & 800 Volt, 1,000 Hz
